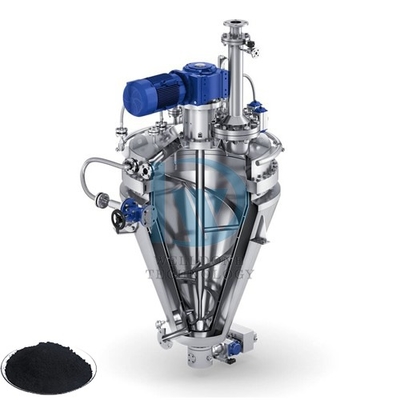

Low Temperature Conical Screw Vacuum Dryer for Organic Methanol

ZXHG is a closed conical vacuum heat contacting dryer, there has an agitator inside to stir the raw material. ZXHG could meet GMP standard, it is widely used for pharmaceutical, biological, chemical and food industries. It is suitable for drying and concentrating liquid, filter cake, powder and granule shape material.

The Helical Dryer series ZXHG was designed to meet the requirements of multipurpose production, as specified by a study group that included major European pharmaceutical manufacturers. The dryer incorporates an optimized mixing assembly, which features a mechanical seal (without product contact); rugged bearings; a small surface area (for reduced product hold-up); a reduced gap to the vessel wall (for enhanced mixing performance); and a 30% reduction in shaft length (so there is no bending moment). An integrated containment filter is included for processing active agents. The overall height of the ZXHG has been reduced due to a patented bowl design. The dryer is available as a mobile unit, with a usable volume of 15–30 L, or a stationary version, with a usable volume of 100–4,000 L. Particle sizes up to 5 mm can be handled. Hall 5.0, Stand D13–E16

1. Mixing and drying complete in one machine, improve productive efficiency.

2. ZXHG adopt jacket for heating, reduce energy consumption.

3. ZXHG adopt vacuum drying, could keep heat and mass transfer, especially suit for thermal sensitive material.

4. The structure is simple, easy to clean, convenient in discharging, which could meet GMP standard.

5. Different agitator form are available for choice

6. The dryer is also available for cooling, reacting or sterilization.
